Description

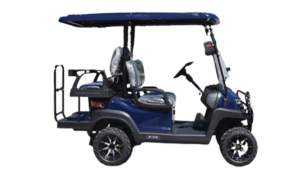

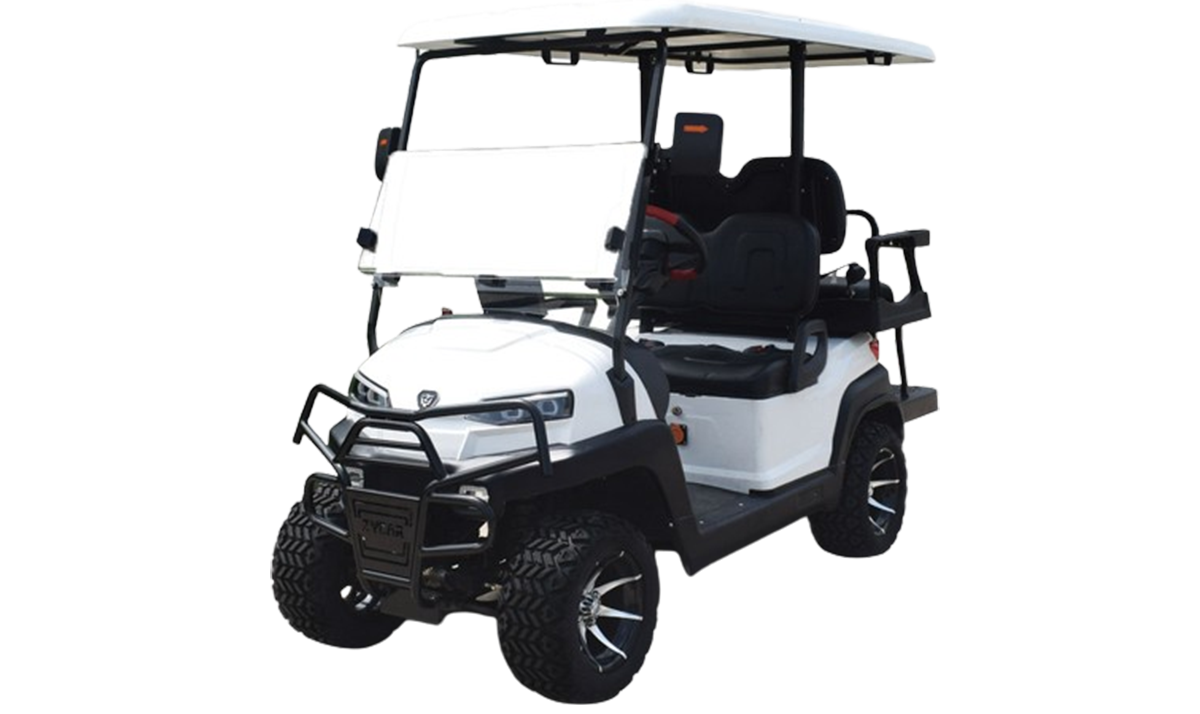

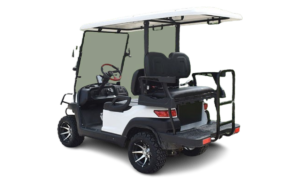

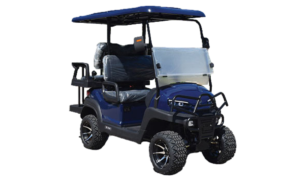

2+2 Seater GOLF CART

System: 48V / 4KW AC System
Battery: Huge capacity deep cycle lead acid battery 6x8V / 140AH
Motor: 4KM AC motor
Controller: AC Controller (48V 400A)
Charger on Board: Input 220V / 110V, Output 48V / 25A
Passenger capacity: 4
Range: 70-90km (based on flat road at speed of 20km/h)
Max Speed: 35km/h
Minimum turning ratius: 4m
Max. climbing ability: 20%
Break distance: <4m
Cart’s weight (including batteries): 655kg
Overall dimensions: LxWxH: 2860x1210x2065mm
Front / Rear wheel distance: Front 880mm / Rear 998mm
Wheelbase: 1790mm
Lighting system: All LED lights: Front High/Low beam with lens; Front and Rear Flowing water turn signal light; Daytime running light
Round LCD digital instrument: CAN communicate to the controller, High accuracy speed meter KPH/MPH, ODO,SOC, Multi-page display with controller diagnostic information
Steering system: Dual automotive-style strut and self-adjust rack-and pinion steering
Brakes: 4 Wheels Hydraulic Disc Break, electrical magnetic brake
Accelerator and break pedal: All aluminum
Suspension system: Front mcpherson independent suspension, Spiral spring + cylinder hydraulic shock absorption ; Integral rear axle, leaf spring + cylinder hydraulic shock absorption
Wheel & Tyre: ATV tyres Aluminum AT20×10-12
